C 64

Cartes mères

Image CPU/MCU VIDEO/SOUND IO/ASIC ROM RAM

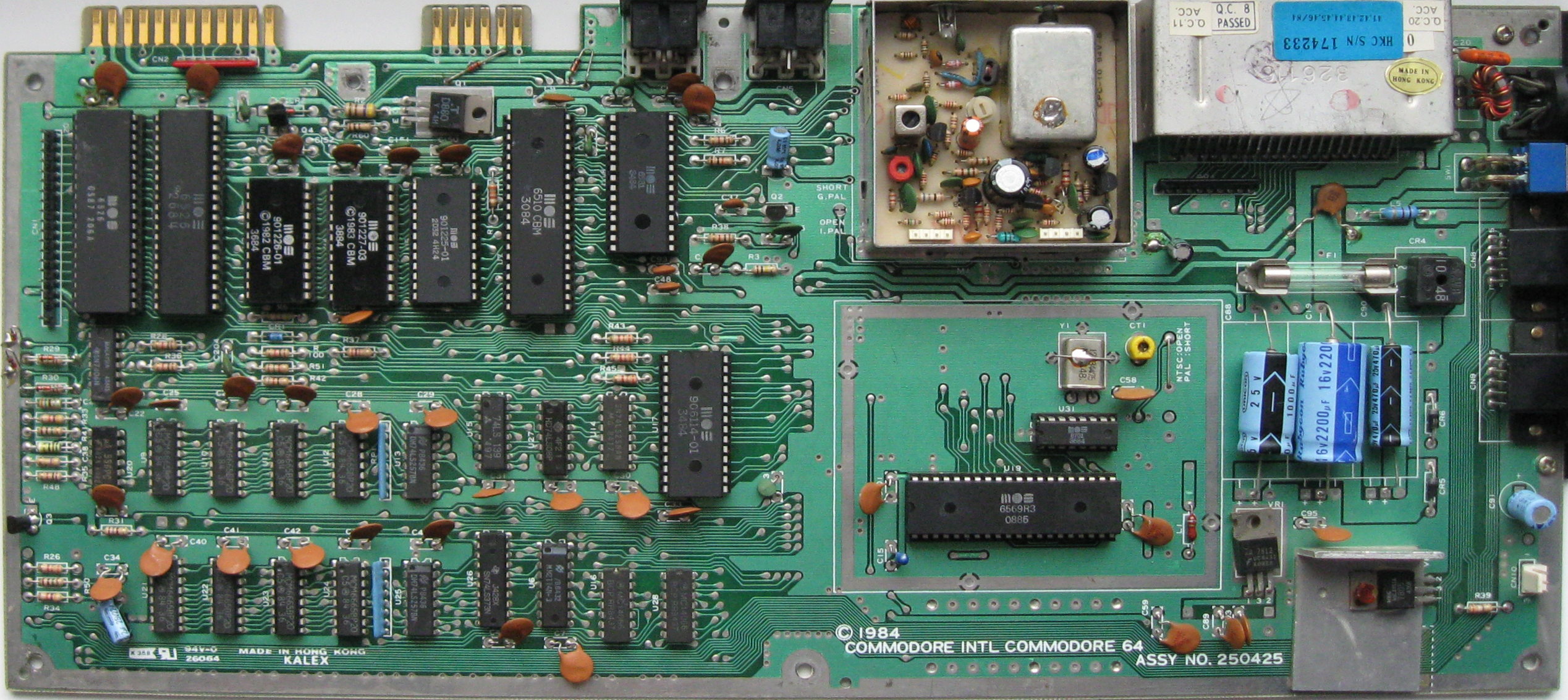

c_64 - Motherboard - Assy 250425
MOS 6510 Microprocessor, with I/O
MOS 6569 R3 Video Interface Chip version 2 - PAL-B
MOS6581 Advanced 3-voice synthesizer chip from MOS Technology
MOS 6526 Complex Interface Adapter (CIA)
MOS906114-01 Commodore 64 PLA
901225-01 Character ROM for C64
901226-01 BASIC v2.0 ROM for C64
901227-03 Kernal ROM for C64
8xMCM6665A
1xSY2114-3
CPU: MOS 6510 @ 0,985 MHz
RAM: 64 Ko
ROM: 20 Ko
Date: 1982
