TO7/70

Cartes mères

Image CPU/MCU VIDEO/SOUND IO/ASIC ROM RAM

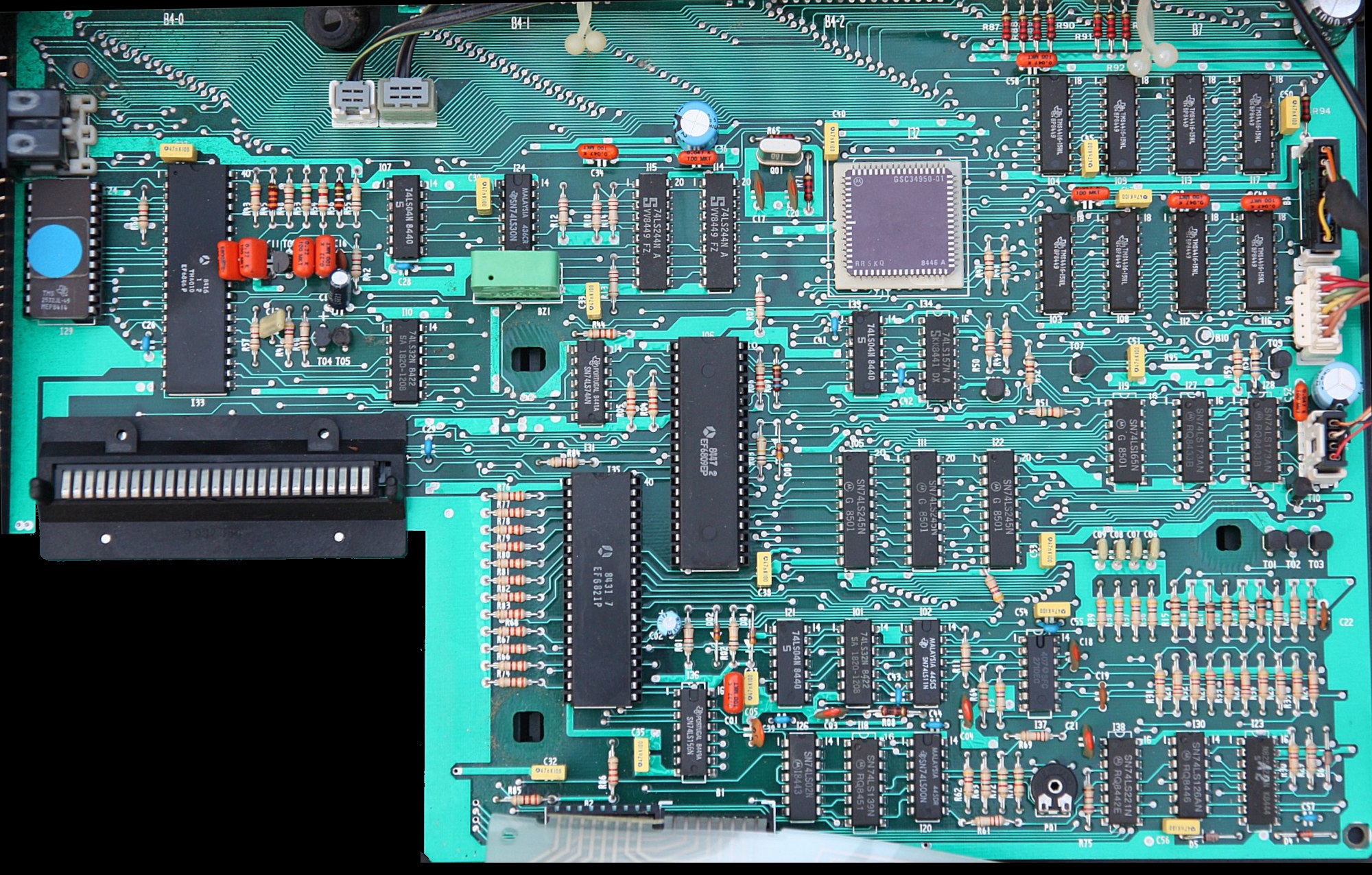

to7_70 - Motherboard - mb
EF6809E 8-Bit Microprocessor Unit (MPU)
EF6821 Peripheral Interface Adapter (PIA)
TMS2532-45 32,768-bit (4K x 8) 450 ns
8xTMS4416
CPU: MC 6809E @ 1 MHz
RAM: 48 Ko
ROM: 6 Ko
Date: 1984
